SIS Series

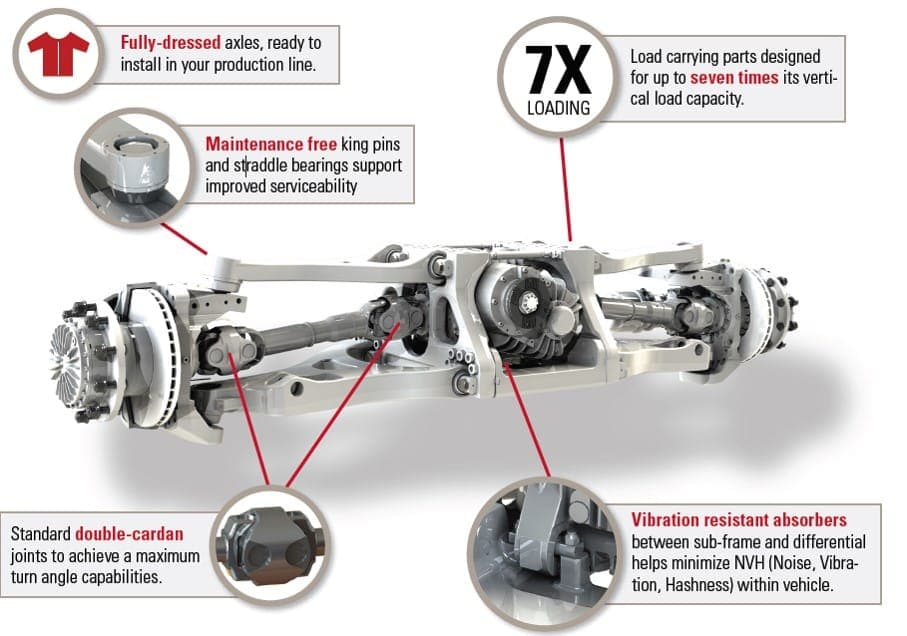

Extreme heavy-duty drive independent axles with low profile differential. Planetary wheel-ends provide maximum durability and superior traction at low speeds.

Fully immersed water fording capabilities in either salt or fresh water. Enhanced serviceability through maintenance free components and differential separation from subframe.

Available in independent and through drive configurations for 4×4’s through 8×8 ‘s

  • Axle Weight Rating (GAWR): 6 – 14tn
  • Double wishbone suspension
  • Hydro-pneumatic or coil-spring & damper suspension
  • Hydraulic or pneumatic disc brake
  • Separate subframe & vibration damping
  • CTI capability
  • Final drive ratios 5,7 – 7,5 (+ custom ratios on demand)
  • Salt and fresh water swimming

Applications

  • Cranes
  • Electric Utility
  • Fire and Rescue
  • Military

Application data sheet for independent suspension axles (.xlsx)
